AI 輔助分類回收系統
本報告旨在介紹一個基於邊緣 AI 技術的輔助回收系統。該系統利用 Realtek AMB82_mini 微控制器作為核心處理單元，整合影像辨識與語音互動功能，旨在實現對回收物品的自動識別與語音指引，從而提升回收效率與正確性。
功能
1. 按下按鈕即可拍攝影像
2. 將圖像發送至 Google-Gemini 並回覆訊息
3. 發送訊息到 Google-TTS 並播放 mp3 檔案進行說話
GenAI程式碼設計流程
graph TD
A[開始] --> B(用戶按下按鈕);
B --> C{拍攝圖像};
C --> D[圖像數據];
D --> E[發送圖像至 Google Gemini];
E --> F{Gemini 圖像辨識};
F -- 返回回應 --> G[接收 Gemini 回應 - 文字];
G --> H[發送回應文字至 Google TTS];
H --> I{TTS 生成 MP3 語音};
I -- 返回 MP3 --> J[接收 TTS MP3 語音檔];
J --> K[播放 MP3 語音];
J --> L[顯示結果於 LCD - 選用];
K --> M[結束];
L --> M;
程式碼
程式重點 <提示字: 請問這個回收物是什麼?請用中文回答>
String Gemini_key = ""; // paste your generated Gemini API key here
char wifi_ssid[] = ""; // your network SSID (name)
char wifi_pass[] = ""; // your network password
#include <WiFi.h>
#include <WiFiUdp.h>
#include "GenAI.h"
#include "VideoStream.h"
#include "SPI.h"
#include "AmebaILI9341.h"
#include "TJpg_Decoder.h" // Include the jpeg decoder library
#include "AmebaFatFS.h"
WiFiSSLClient client;
GenAI llm;
GenAI tts;
AmebaFatFS fs;
String mp3Filename = "test_play_google_tts.mp3";
VideoSetting config(768, 768, CAM_FPS, VIDEO_JPEG, 1);
#define CHANNEL 0
uint32_t img_addr = 0;
uint32_t img_len = 0;
const int buttonPin = 1; // the number of the pushbutton pin
//String prompt_msg = "What type and name of the recyclables in the picture?";
String prompt_msg = "請問這個回收物是什麼?請用中文回答";
#define TFT_RESET 5
#define TFT_DC 4
#define TFT_CS SPI_SS
AmebaILI9341 tft = AmebaILI9341(TFT_CS, TFT_DC, TFT_RESET);
#define ILI9341_SPI_FREQUENCY 20000000
bool tft_output(int16_t x, int16_t y, uint16_t w, uint16_t h, uint16_t *bitmap)
{
tft.drawBitmap(x, y, w, h, bitmap);
// Return 1 to decode next block
return 1;
}
void initWiFi()
{
for (int i = 0; i < 2; i++) {
WiFi.begin(wifi_ssid, wifi_pass);
delay(1000);
Serial.println("");
Serial.print("Connecting to ");
Serial.println(wifi_ssid);
uint32_t StartTime = millis();
while (WiFi.status() != WL_CONNECTED) {
delay(500);
if ((StartTime + 5000) < millis()) {
break;
}
}
if (WiFi.status() == WL_CONNECTED) {
Serial.println("");
Serial.println("STAIP address: ");
Serial.println(WiFi.localIP());
Serial.println("");
break;
}
}
}
void init_tft()
{
tft.begin();
tft.setRotation(2);
tft.clr();
tft.setCursor(0, 0);
tft.setForeground(ILI9341_GREEN);
tft.setFontSize(2);
}
void setup()
{
Serial.begin(115200);
SPI.setDefaultFrequency(ILI9341_SPI_FREQUENCY);
initWiFi();
config.setRotation(0);
Camera.configVideoChannel(CHANNEL, config);
Camera.videoInit();
Camera.channelBegin(CHANNEL);
Camera.printInfo();
pinMode(buttonPin, INPUT);
pinMode(LED_B, OUTPUT);
init_tft();
tft.println("GenAIVision_TTS_LCD");
TJpgDec.setJpgScale(2); // The jpeg image can be scaled by a factor of 1, 2, 4, or 8
TJpgDec.setCallback(tft_output);
}
void loop()
{
tft.setCursor(0,1);
tft.println("press button to capture image");
if ((digitalRead(buttonPin)) == 1) {
tft.println("Capture Image");
// Start MP4 recording after 3 seconds of blinking
for (int count = 0; count < 3; count++) {
digitalWrite(LED_B, HIGH);
delay(500);
digitalWrite(LED_B, LOW);
delay(500);
}
// Camera take image
Camera.getImage(0, &img_addr, &img_len);
// JPEG decode image & display
TJpgDec.getJpgSize(0, 0, (uint8_t *)img_addr, img_len);
TJpgDec.drawJpg(0, 0, (uint8_t *)img_addr, img_len);
// LLM Vision
String text = llm.geminivision(Gemini_key, "gemini-2.0-flash", prompt_msg, img_addr, img_len, client);
Serial.println(text);
// Text-To-Speech & play mp3 file
tft.clr();
tft.setCursor(0, 0);
tft.println("Text-To-Speech");
//tts.googletts(mp3Filename, text, "en-US");
tts.googletts(mp3Filename, text, "zh-TW");
delay(500);
sdPlayMP3(mp3Filename);
}
}
void sdPlayMP3(String filename)
{
fs.begin();
String filepath = String(fs.getRootPath()) + filename;
File file = fs.open(filepath, MP3);
file.setMp3DigitalVol(175);
file.playMp3();
file.close();
fs.end();
}
實作成果
照片

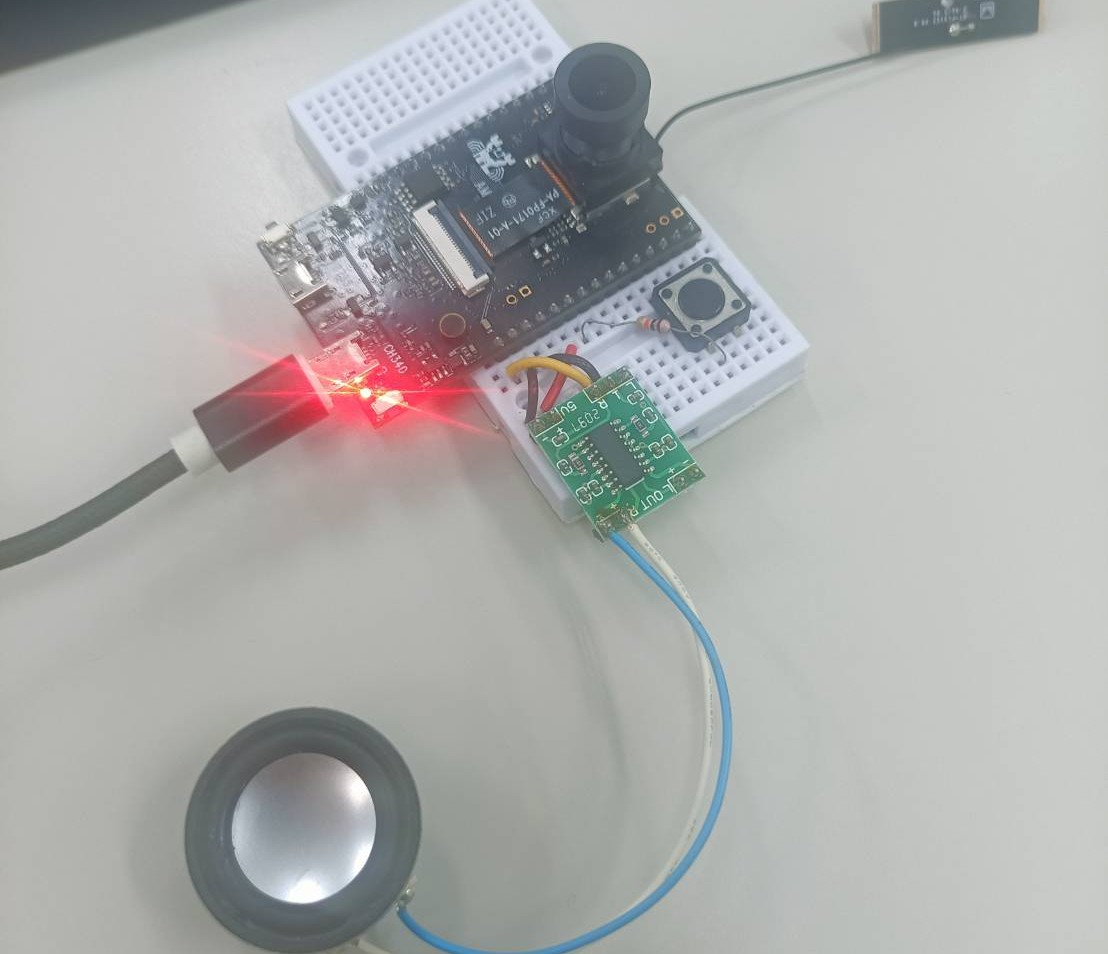

- 設備照
影片
- Damo影片
