AI 盲人視覺輔助系統
本報告旨在介紹一款創新且多功能的AI 盲人視覺輔助系統。該系統旨在透過整合多種感官輸入與先進人工智慧，為視障人士提供即時、全面的環境感知與語音導引。其核心功能包括：透過觸摸感應觸發系統；隨後，系統會拍攝當前影像並傳送至 Google Gemini Vision 詢問現場狀況；同時，它會將實時時鐘 (RTC) 時間資訊發送給 Gemini，以獲得時間相關的回應；更進一步地，系統支援麥克風錄製用戶語音並傳送給 Gemini 進行理解，AI 將返回相關文本回應，最終所有來自 Gemini 的文本都將透過文字轉語音 (TTS) 播放出來
功能
1. 觸摸（ADC）
2. 拍攝影像並傳送給 Gemini 並詢問現場狀況
3. 發送 RTC時間訊息給 Gemini 並返回文本
4. 麥克風錄製音訊並發送給 Gemini 返回文本，然後進行文本轉語音
GenAI程式碼設計流程
graph TD
A[開始] --> B(系統啟動/待機);
B --> C(用戶觸摸感應器 - ADC);
C --> D[觸摸信號];
D --> E[同步執行];
E --> E1[拍攝影像];
E --> E2[讀取 RTC 時間];
E --> E3[麥克風錄製音訊];
E1 --> F{影像數據};
E2 --> G{時間數據};
E3 --> H{音訊數據};
F & G & H --> I[打包多模態數據];
I --> J[發送打包數據至 Google Gemini - 多模態輸入];
J --> K{Gemini 分析並返回多段文本回應};
K -- 成功返回 --> L[接收 Gemini 回應文本];
L --> M[將所有文本發送至 Google TTS];
M --> N{TTS 生成整合 MP3 語音};
N -- 成功 --> O[接收整合 MP3 語音檔];
N -- 失敗 --> P[TTS 錯誤處理/提示音];
P --> B;
O --> Q[播放整合 MP3 語音];
Q --> R[語音播報完成];
R --> B;
K -- 失敗/超時 --> S[Gemini 錯誤處理/提示音];
S --> B;
說明：
- 我在
B(用戶觸摸感應器 ADC);節點中將ADC改為- ADC。 - 我在
I --> J[發送打包數據至 Google Gemini (多模態輸入)];節點中將(多模態輸入)改為- 多模態輸入。 - 我在
K{Gemini 分析並返回多段文本回應};節點中，這個節點本身沒有括號，保持不變。 - 我在
N{TTS 生成整合 MP3 語音};節點中，這個節點本身沒有括號，保持不變。
程式碼產生提示

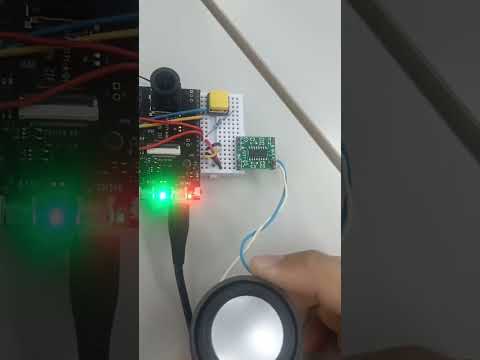

首先我有一個按鈕是用來啟動的
接著我有一個鏡頭用來看環境

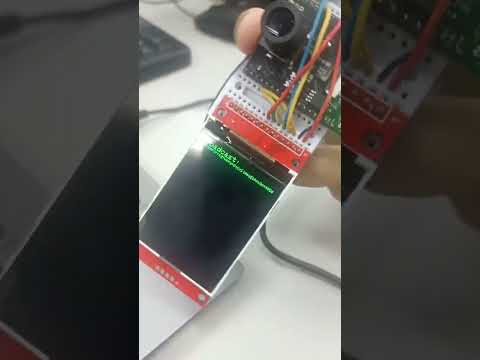

TFT LCD 用來輸出回傳的文字跟鏡頭畫面
最後我有一個喇叭要將文字轉成語音播報
請用我給的範例 組合出符合功能的程式碼
程式碼
#include <WiFi.h>
#include <WiFiUdp.h> // Often included with WiFi.h for network functions
#include "GenAI.h" // For LLM (Vision, Text) and TTS
#include "VideoStream.h" // For Camera operations
#include "SPI.h" // For SPI communication with LCD
#include "AmebaILI9341.h" // For ILI9341 TFT LCD driver
#include "TJpg_Decoder.h" // For JPEG decoder to display camera output on LCD
#include <AmebaFatFS.h> // For SD card operations (saving MP3 for TTS)
#include "rtc.h" // For Real-Time Clock
#include <time.h> // For time structures (struct tm)
#include "StreamIO.h" // For audio streaming - RE-ADDED
#include "AudioStream.h" // For audio input (microphone) - RE-ADDED
#include "AudioEncoder.h" // For audio encoding - RE-ADDED
#include "MP4Recording.h" // For recording audio to MP4 - RE-ADDED
#include "Base64.h" // For Base64 encoding - RE-ADDED
#include <ArduinoJson.h> // For JSON parsing - RE-ADDED
// 請替換為你的網路 SSID 和密碼
char wifi_ssid[] = "";
char wifi_pass[] = "";
// --- API 金鑰 ---
String Gemini_key = ""; // <<< 重要：請替換為你的實際金鑰
String openAI_key = ""; // Not strictly needed for this example, but keep it as a placeholder. (此範例非必需，但作為佔位符保留。)
String Llama_key = ""; // Not strictly needed for this example, but keep it as placeholder. (此範例非必需，但作為佔位符保留。)
// SD Card MP3 Filename for TTS output (用於 TTS 輸出的 SD 卡 MP3 檔案名稱)
String mp3Filename = "broadcast_output.mp3";
// Audio Recording Configuration for Speech-to-Text (用於語音轉文字的音訊錄製配置)
String audioRecordFilename = "user_input"; // Filename for recorded audio
int recordSeconds = 5; // Duration for audio recording (e.g., 5 seconds for user query)
// Camera Configuration (相機配置)
// Adjusted resolution for troubleshooting Bus Fault / VOE initialization issues.
// Start with a lower resolution to reduce memory pressure and complexity.
VideoSetting config(320, 240, CAM_FPS, VIDEO_JPEG, 1); // FIXED: Reduced camera resolution for troubleshooting
#define CHANNEL 0 // Camera channel
uint32_t img_addr = 0; // Memory address of the captured image
uint32_t img_len = 0; // Length of the captured image data
// Prompt message for the LLM Vision model (用於 LLM 影像模型提示訊息)
// This will be dynamically updated with time and user's voice query.
String prompt_msg_base = "請問圖片中的內容是什麼?請用繁體中文，簡潔地回答。";
// Pin Definitions (引腳定義)
const int buttonPin = 1; // The pin connected to the pushbutton (連接到按鈕的引腳)
// LED_B and LED_G are already defined in AmebaPro2's variant.h (LED_B 和 LED_G 已在 AmebaPro2 的 variant.h 中定義)
// TFT LCD Pin Definitions (TFT LCD 引腳定義)
#define TFT_RESET 5 // Reset pin
#define TFT_DC 4 // Data/Command pin
#define TFT_CS SPI_SS // Chip Select pin (using default SPI SS)
AmebaILI9341 tft = AmebaILI9341(TFT_CS, TFT_DC, TFT_RESET); // TFT LCD object
#define ILI9341_SPI_FREQUENCY 20000000 // SPI frequency for LCD
// Constants for LCD dimensions and font sizes (for missing tft.height() and tft.getFontSize())
// (用於 LCD 尺寸和字體大小的常數，因為缺少 tft.height() 和 tft.getFontSize())
// ILI9341 is typically 240x320. With setRotation(2), it's logically 320px wide by 240px tall.
#define LCD_WIDTH_ROTATED 320
#define LCD_HEIGHT_ROTATED 240
#define FONT_SIZE_LEVEL1_PIX_HEIGHT 8 // Approximate pixel height for font size 1
#define FONT_SIZE_LEVEL2_PIX_HEIGHT 16 // Approximate pixel height for font size 2 (8 * 2)
// --- Global Objects --- (全域物件)
WiFiSSLClient client; // For secure HTTP connections to APIs (用於安全 HTTP 連接到 API)
GenAI llm; // Object for interacting with Generative AI LLM (Gemini Vision, STT, Text)
GenAI tts; // Object for interacting with Text-to-Speech (Google TTS)
AmebaFatFS fs; // File system object for SD card (SD 卡檔案系統物件)
// For RTC (用於即時時鐘)
long long currentEpochSeconds = 0;
struct tm *timeinfo;
// For Audio Processing (用於音訊處理) - RE-ADDED
AudioSetting configA(1); // Audio configuration (e.g., sample rate)
Audio audio; // Audio input from microphone
AAC aac; // AAC audio encoder
MP4Recording mp4; // MP4 recording module (to save audio for STT)
StreamIO audioStreamer1(1, 1); // Stream from audio input to encoder
StreamIO audioStreamer2(1, 1); // Stream from encoder to MP4 recording
// --- Function Prototypes --- (函數原型)
void initWiFi();
void init_tft();
bool tft_output(int16_t x, int16_t y, uint16_t w, uint16_t h, uint16_t *bitmap);
void sdPlayMP3(String filename);
String getFormattedTime();
// --- Main Setup --- (主要設定)
void setup() {
Serial.begin(115200); // Initialize serial communication for debugging (初始化序列通訊用於偵錯)
SPI.setDefaultFrequency(ILI9341_SPI_FREQUENCY); // Set SPI frequency for LCD (設定 LCD 的 SPI 頻率)
initWiFi(); // Initialize Wi-Fi connection (初始化 Wi-Fi 連線)
// Initialize RTC (初始化即時時鐘)
Serial.println("Initializing RTC...");
rtc.Init();
// Set initial RTC time (adjust if needed, or get from NTP later)
// For now, setting a fixed initial time for demonstration purposes.
// In a real application, you might want to use NTP to get accurate time.
// (設定初始 RTC 時間（如有需要可調整，或稍後從 NTP 獲取）。
// 目前僅設定固定初始時間用於演示。在實際應用中，你可能希望使用 NTP 獲取準確時間。)
long long epochTime = rtc.SetEpoch(2025, 6, 12, 12, 0, 0); // Year, Month, Day, Hour, Min, Sec (年, 月, 日, 時, 分, 秒)
rtc.Write(epochTime);
// Configure Audio input, encoder, and MP4 recorder for Speech-to-Text - RE-ADDED
Serial.println("Configuring audio for recording...");
audio.configAudio(configA);
audio.begin();
aac.configAudio(configA);
aac.begin();
mp4.configAudio(configA, CODEC_AAC);
mp4.setRecordingDuration(recordSeconds);
mp4.setRecordingFileCount(1);
mp4.setRecordingFileName(audioRecordFilename);
mp4.setRecordingDataType(STORAGE_AUDIO);
// Link audio streams: Mic -> AAC Encoder -> MP4 Recorder - RE-ADDED
audioStreamer1.registerInput(audio);
audioStreamer1.registerOutput(aac);
if (audioStreamer1.begin() != 0) {
Serial.println("ERROR: Audio StreamIO link 1 (Mic to AAC) start failed!");
}
audioStreamer2.registerInput(aac);
audioStreamer2.registerOutput(mp4);
if (audioStreamer2.begin() != 0) {
Serial.println("ERROR: Audio StreamIO link 2 (AAC to MP4) start failed!");
}
audio.printInfo(); // Print audio information to serial
// Camera Configuration (相機配置)
Serial.println("Configuring Camera...");
config.setRotation(0); // Set camera rotation if needed
Camera.configVideoChannel(CHANNEL, config);
Camera.videoInit();
Camera.channelBegin(CHANNEL);
Camera.printInfo(); // Print camera information to serial
// Configure GPIO pins (配置 GPIO 引腳)
pinMode(buttonPin, INPUT); // Button pin (assuming external pull-down if not INPUT_PULLUP)
pinMode(LED_B, OUTPUT); // Blue LED (now correctly using the pre-defined macro)
pinMode(LED_G, OUTPUT); // Green LED (now correctly using the pre-defined macro)
// Initialize TFT LCD (初始化 TFT LCD)
Serial.println("Initializing TFT LCD...");
init_tft();
tft.println("GenAI Vision & TTS"); // Initial message on LCD
// Setup JPEG decoder callback for LCD (設定 JPEG 解碼器回調函數用於 LCD)
TJpgDec.setJpgScale(1); // Set scale factor (1 = no scaling, 2 = 1/2, 4 = 1/4, 8 = 1/8)
// Use 1 for best quality if image size fits LCD, or higher for smaller images.
TJpgDec.setCallback(tft_output); // Set the callback function for drawing JPEG blocks to TFT
Serial.println("Setup complete. Waiting for button press to interact...");
tft.setCursor(0, 50); // Move cursor down for next message
tft.println("Press button to start");
}
// --- Main Loop --- (主循環)
void loop() {
// Check if the button is pressed
if (digitalRead(buttonPin) == HIGH) { // Assuming button is HIGH when pressed
// Debounce delay (去抖延遲)
delay(50);
while (digitalRead(buttonPin) == HIGH); // Wait until button is released
delay(50); // Debounce after release
Serial.println("Button pressed! Starting interaction...");
tft.clr(); // Clear LCD
tft.setCursor(0, 0);
tft.println("Speak your query:");
digitalWrite(LED_G, HIGH); // Green LED ON while processing
// Step 1: Indicate recording with blinking blue LED (藍色 LED 閃爍表示錄音中)
for (int count = 0; count < 3; count++) {
digitalWrite(LED_B, HIGH);
delay(500);
digitalWrite(LED_B, LOW);
delay(500);
}
// Step 2: Record user's voice command for Speech-to-Text - RE-ADDED
Serial.println("Recording audio for " + String(recordSeconds) + " seconds...");
// Removed 'bool recordedTextSuccess =' as llm.geminiaudio returns String
String recordedText = llm.geminiaudio(Gemini_key, audioRecordFilename, "gemini-2.0-flash", mp4, "Please transcribe the audio into text.", client);
Serial.print("User said: ");
Serial.println(recordedText);
if (recordedText.length() == 0 || recordedText.indexOf("Connect to generativelanguage.googleapis.com failed.") != -1) { // Check for actual failure or error message
Serial.println("Speech detected or transcription failed, or API connection failed. Please try again.");
digitalWrite(LED_G, LOW);
tft.clr();
tft.setCursor(0, 0);
tft.println("API/Speech failed!");
tft.setCursor(0, FONT_SIZE_LEVEL2_PIX_HEIGHT);
tft.println("Check WiFi/API Key/Certs."); // Added a more specific message for common issues
delay(2000); // Wait a bit before allowing another press
return;
}
// Display transcribed text on LCD
tft.clr();
tft.setCursor(0, 0);
tft.println("You said:");
tft.setFontSize(1);
tft.println(recordedText);
tft.setFontSize(2);
delay(1000); // Show transcribed text for a moment
Serial.println("Capturing image...");
tft.clr();
tft.setCursor(0, 0);
tft.println("Capturing Image...");
// Step 3: Camera take image (相機捕捉圖像)
Camera.getImage(0, &img_addr, &img_len);
Serial.print("Image captured: address=0x");
Serial.print((unsigned long)img_addr, HEX);
Serial.print(", length=");
Serial.print(img_len);
Serial.println(" bytes");
// Step 4: JPEG decode image & display on TFT LCD (JPEG 解碼圖像並顯示在 TFT LCD 上)
tft.clr(); // Clear LCD again for image display
tft.setCursor(0, 0); // Reset cursor
Serial.println("Displaying image on LCD...");
TJpgDec.drawJpg(0, 0, (uint8_t *)img_addr, img_len); // Draw JPEG from memory to LCD
// Step 5: Get current time from RTC (步驟 5：從 RTC 獲取當前時間)
currentEpochSeconds = rtc.Read();
String formattedTime = getFormattedTime();
Serial.print("Current Time: ");
Serial.println(formattedTime);
// Step 6: Prepare prompt for LLM Vision (為 LLM 影像模型準備提示)
// Combine current time, image description request, AND user's voice query
String full_prompt_msg = "現在時間是 " + formattedTime + "。\n";
full_prompt_msg += "圖片中的內容是什麼？請使用繁體中文，簡潔地回答。\n";
full_prompt_msg += "用戶的語音查詢是：「" + recordedText + "」。請綜合圖片內容和用戶語音查詢，生成一段簡潔的繁體中文回應。";
Serial.println("Sending prompt to LLM Vision: " + full_prompt_msg);
tft.setCursor(0, LCD_HEIGHT_ROTATED - FONT_SIZE_LEVEL2_PIX_HEIGHT * 2); // Position text near bottom
tft.println("Analyzing image & query...");
// Step 7: Send image and prompt to LLM Vision (Gemini Vision)
// (步驟 7：將圖像和提示發送給 LLM 影像模型（Gemini Vision）)
String visionResponse = llm.geminivision(Gemini_key, "gemini-2.0-flash", full_prompt_msg, img_addr, img_len, client);
if (visionResponse.length() == 0 || visionResponse.indexOf("Connect to generativelanguage.googleapis.com failed.") != -1) { // Check for actual failure or error message
visionResponse = "抱歉，無法識別圖片內容或獲取回應。請再試一次。連線錯誤。"; // More specific error message
Serial.println("LLM Vision API connection failed.");
digitalWrite(LED_G, LOW);
tft.clr();
tft.setCursor(0, 0);
tft.println("Vision API Failed!");
tft.setCursor(0, FONT_SIZE_LEVEL2_PIX_HEIGHT);
tft.println("Check WiFi/API Key/Certs.");
delay(2000);
return;
}
Serial.print("LLM Vision Response: ");
Serial.println(visionResponse);
// Step 8: Text-To-Speech & play mp3 file (文字轉語音並播放 mp3 檔案)
tft.clr(); // Clear LCD for TTS status
tft.setCursor(0, 0);
tft.println("Broadcast:");
// Display LLM response on LCD
tft.setFontSize(1); // Smaller font for detail
tft.println(visionResponse);
tft.setFontSize(2); // Revert to larger font for next status
Serial.println("Converting text to speech...");
// Removed boolean assignment as tts.googletts is a void function.
// Success of TTS is now primarily checked by sdPlayMP3 attempting to open the file.
tts.googletts(mp3Filename, visionResponse, "zh-TW"); // "zh-TW" for Traditional Chinese
delay(500); // Give some time for file to be written
// Step 9: Play the generated MP3 (播放生成的 MP3)
Serial.println("Playing broadcast...");
sdPlayMP3(mp3Filename); // This function now has improved error handling
digitalWrite(LED_G, LOW); // Green LED OFF after processing
Serial.println("Broadcast complete. Waiting for next button press...");
tft.setCursor(0, LCD_HEIGHT_ROTATED - FONT_SIZE_LEVEL2_PIX_HEIGHT); // Position text near bottom
tft.println("Done. Press button.");
}
delay(100); // Small delay to prevent busy-waiting
}
// --- Helper Functions --- (輔助函數)
// Initialize Wi-Fi connection (初始化 Wi-Fi 連線)
void initWiFi() {
for (int i = 0; i < 2; i++) {
WiFi.begin(wifi_ssid, wifi_pass);
delay(1000);
Serial.print("Connecting to ");
Serial.println(wifi_ssid);
uint32_t startTime = millis();
while (WiFi.status() != WL_CONNECTED) {
delay(500);
if ((millis() - startTime) > 10000) { // 10 second timeout
Serial.println("Wi-Fi connection timed out. Retrying...");
break;
}
}
if (WiFi.status() == WL_CONNECTED) {
Serial.println("");
Serial.println("Wi-Fi connected!");
Serial.print("STA IP address: ");
Serial.println(WiFi.localIP());
Serial.println("");
return; // Exit function if connected
}
}
Serial.println("Failed to connect to Wi-Fi after multiple attempts.");
// In a real application, you might want to add error handling here.
}
// Initialize TFT LCD (初始化 TFT LCD)
void init_tft() {
tft.begin();
tft.setRotation(2); // Adjust rotation as needed for your LCD orientation
tft.clr(); // Clear the screen
tft.setCursor(0, 0); // Set cursor to top-left
tft.setForeground(ILI9341_GREEN); // Set text color
tft.setFontSize(2); // Set font size (1 is smallest, 2 is medium, etc.)
}
// Callback function for JPEG decoder to draw blocks to TFT (JPEG 解碼器繪製區塊到 TFT 的回調函數)
bool tft_output(int16_t x, int16_t y, uint16_t w, uint16_t h, uint16_t *bitmap) {
tft.drawBitmap(x, y, w, h, bitmap); // Draw the decoded bitmap block
return 1; // Return 1 to decode next block
}
// Play MP3 file from SD card (從 SD 卡播放 MP3 檔案)
void sdPlayMP3(String filename) {
// Attempt to begin file system operation
if (!fs.begin()) {
Serial.println("ERROR: Failed to mount SD card file system!");
return; // Exit if SD card cannot be mounted
}
String filepath = String(fs.getRootPath()) + filename;
File file = fs.open(filepath, MP3); // Open file as MP3 type
if (!file) {
Serial.println("ERROR: Failed to open MP3 file: " + filepath + ". Does it exist?");
fs.end(); // Ensure file system is unmounted on error
return;
}
file.setMp3DigitalVol(255); // Set volume to maximum (0-255) to ensure audibility
Serial.println("Playing MP3: " + filepath);
file.playMp3(); // Start playback (this is non-blocking)
// Add a delay to allow the MP3 to play.
// In a production scenario, you might want a more sophisticated way to check if playback has finished.
Serial.println("Waiting for MP3 playback to finish (5 seconds)...");
delay(5000); // Example: wait 5 seconds for audio to play
file.close(); // Close file after playback is initiated
fs.end(); // Unmount SD card file system
Serial.println("MP3 playback finished.");
}
// Get formatted time string from RTC (從 RTC 獲取格式化的時間字串)
String getFormattedTime() {
timeinfo = localtime(¤tEpochSeconds);
String timeString = "";
// Format:YYYY-MM-DD HH:MM:SS
timeString += String(timeinfo->tm_year + 1900);
timeString += "-";
if ((timeinfo->tm_mon + 1) < 10) timeString += "0";
timeString += String(timeinfo->tm_mon + 1);
timeString += "-";
if (timeinfo->tm_mday < 10) timeString += "0";
timeString += String(timeinfo->tm_mday);
timeString += " ";
if (timeinfo->tm_hour < 10) timeString += "0";
timeString += String(timeinfo->tm_hour);
timeString += ":";
if (timeinfo->tm_min < 10) timeString += "0";
timeString += String(timeinfo->tm_min);
timeString += ":";
if (timeinfo->tm_sec < 10) timeString += "0";
timeString += String(timeinfo->tm_sec);
return timeString;
}
實作成果
照片
設備圖
Damo(全)的序列阜輸出結果
影片
小Damo
點擊圖片播放
Damo(全)
點擊圖片播放
